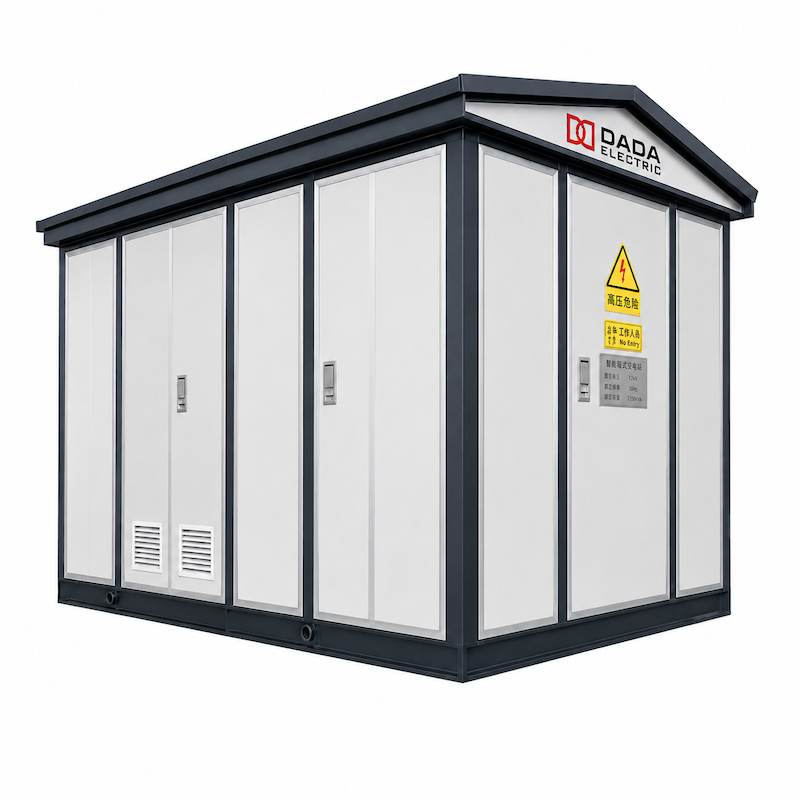

European-Style Pad-Mounted Substation (High-Voltage/Low-Voltage Prefabricated Substation)


Availability:

Quantity:

Inquire Add to Basket

Model:
Box-Type Substations
Brand:
DADA

The European-style pad-mounted substation (high-voltage/low-voltage prefabricated substation) organically combines a high-voltage incoming unit, a transformer step-down unit, a low-voltage distribution unit, and the corresponding protection, metering, compensation, and measurement-control devices, prefabricated within a single fully enclosed metal enclosure that is moisture-proof, rust-proof, dust-proof, rodent-proof, fireproof, theft-proof, and heat-insulated, and that can be transported and installed as a complete unit.

It receives grid power through the high-voltage switchgear, steps it down via the transformer, and distributes it to end users through the low-voltage switchgear, thereby achieving the reception, conversion, and distribution of electrical power.

Product Description

Built on Schneider technology with modular manufacturing, it offers strong assembly integration, a compact structure, safe and reliable operation, an attractive design, fast installation, easy construction, ease of operation, and high reliability.

This product consists of high-voltage switchgear, a transformer, and low-voltage switchgear, divided into three relatively independent compartments—a high-voltage compartment, a transformer compartment, and a low-voltage compartment. It is equipped with an automatic temperature-control device, while its ventilation design uses high-efficiency automatic fans, and an insulation layer at the top prevents the condensation that can arise in high-temperature or extremely cold regions from rapid temperature changes inside the enclosure. A rich range of exterior materials and colors is available, giving users a wide choice. Two internal layouts are available: in-line ("目"-shaped) and delta ("品"-shaped).

This assembly complies with GB/T 17467-2020 High-Voltage/Low-Voltage Prefabricated Substations and IEC 62271-202:2022 High-Voltage/Low-Voltage Prefabricated Substations.

european type box substation prefabricated box substation compact substation YB box-type substation EU style box substation
