In the construction of substations, industrial plants, commercial buildings, or renewable energy projects, one question almost every engineer will face is: should I choose an oil-immersed transformer or a dry-type transformer? Each technology has its supporters, and there is no universal answer. Making the wrong choice can lead to project cost overruns, delayed delivery, or even compromised long-term operational safety. This article examines the core differences from the perspective of engineering application and life-cycle value, helping you make an accurate techno-economic decision.
1. What Is an Oil-Immersed Transformer?

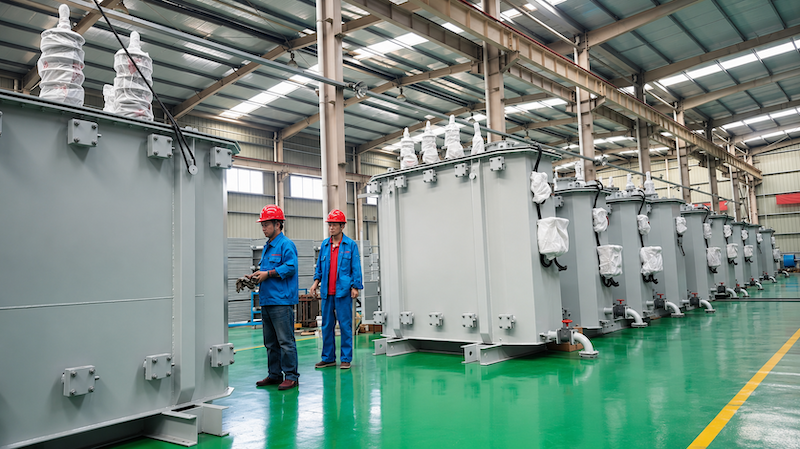

An oil-immersed transformer is one in which the core and windings are completely submerged in insulating and cooling transformer oil. This structure is the most widely used and technologically mature choice in the medium- and high-voltage power transmission and distribution field.
● Core strengths: reliability and overload capacity. Thanks to the highly effective heat dissipation and insulation properties of the liquid, oil-immersed transformers can handle higher voltage levels and larger capacities, demonstrating exceptional resilience in harsh outdoor environments and under heavy load impacts.
● Hermetically sealed, low-maintenance design. Modern distribution oil-type transformers commonly adopt a fully sealed corrugated tank structure. The elastic deformation of the corrugated panels compensates for oil volume changes, effectively isolating the internal oil from outside air, slowing oil aging, and significantly reducing maintenance needs.
● Proven economic efficiency. Under the same capacity and performance specifications, the initial procurement and material cost of an oil-immersed transformer is generally lower than that of a dry-type unit. Its efficiency standards are well established, and long-term operating losses are easy to control.
● The ideal outdoor application. Oil-immersed transformers are inherently suitable for pole-mounted, pad-mounted, and ground platform installations. They are the absolute workhorse for grid distribution areas, main industrial park power distribution, and renewable energy step-up applications.
2. What Is a Dry-Type Transformer?

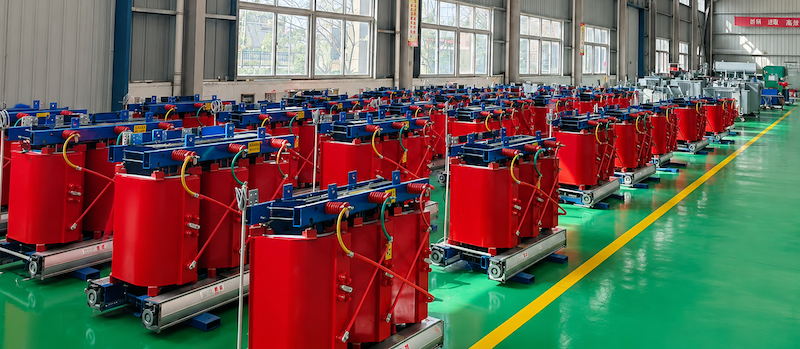

A dry-type transformer, particularly the epoxy resin cast type, uses solid insulating material to encapsulate the entire winding. By eliminating dependence on liquid, it elevates safety performance to a new level.
● Core strengths: safety and environmental protection. With no combustible transformer oil, the risk of leakage, fire, or explosion is fundamentally eliminated. This is a decisive advantage in densely populated areas, underground spaces, data centers, high-rise buildings, and any location with stringent fire safety requirements.
● Simpler installation and maintenance. There is no need to build complex auxiliary facilities like oil containment pits or fire walls, greatly reducing initial civil engineering costs and approval hurdles. In daily operation, maintenance tasks like oil sampling are virtually eliminated, achieving a true "install and forget" reality.
● Excellent electrical and environmental performance. The epoxy casting process gives the windings outstanding resistance to moisture and short-circuit forces. With advances in materials and manufacturing, modern dry-type transformers deliver excellent partial discharge control and low noise, allowing them to integrate smoothly into urban power distribution environments.
● The preferred indoor solution. As distribution transformers, dry-type units dominate in commercial buildings, airports, hospitals, semiconductor fabs, and any high-reliability indoor power supply scenario.
3. Key Differences and Application Comparison
| Comparison Dimension | Oil-Immersed Transformer | Dry-Type Transformer (Epoxy Cast) |
|---|---|---|
| Safety & Fire Protection | Contains combustible oil; fire precautions required | Oil-free design, self-extinguishing, highest safety level |
| Suitable Environment | Outdoor, standalone substations, inside box-type substations | Indoor, basements, high-rises, densely populated areas |
| Reliability Performance | Strong overload capacity, excellent outdoor weather resistance | High short-circuit and moisture resistance, low partial discharge |
| Maintenance Workload | Periodic oil sampling and seal inspection | Maintenance-free; only periodic surface cleaning and tightening |
| Initial Investment | Lower equipment cost but higher civil costs (oil pit etc.) | Higher equipment cost but significantly lower civil costs |
| Total Life-Cycle Cost | High efficiency standards, controllable operating losses | No maintenance, no leakage risk, lower disposal cost |
| Application Scenarios | Grid distribution, industrial plants, renewable energy step-up | Commercial buildings, data centers, hospitals, infrastructure |
4. How to Make the Choice: Four Key Questions
As a project decision-maker, you don't need to be a transformer expert. Simply ask yourself these four questions in order:
● Where will it be installed? For outdoor or standalone substation applications, an oil-immersed transformer is the mainstream and economical choice. If it is going underground or inside a building, safety regulations will directly steer you toward a dry-type unit.
● What level of safety is required? In hospitals, airports, large shopping malls, or data centers, the oil-free design of a dry-type transformer provides irreplaceable safety advantages and approval convenience.
● Is a mature maintenance system in place? Utilities and large industrial enterprises generally have established O&M teams that can manage oil-type transformers well. For commercial users or smaller sites with limited maintenance staff, the maintenance-free nature of dry-type units is immensely attractive.
● How do you calculate the full life-cycle cost? Don't just look at the purchase price. Comprehensively evaluate the Total Cost of Ownership (TCO), including civil works, installation, operating losses, and long-term maintenance. In many indoor projects, the civil and fire-protection savings of a dry-type transformer can fully offset its higher equipment price.
As a manufacturer with complete production lines for both oil-immersed and dry-type transformers, we firmly believe: there is no best transformer, only the transformer that best fits your project's requirements. Our role is to work through your operational conditions with you and use engineering experience to help you see the long-term consequences of each choice—not to push a specific product.
5. Conclusion: Reliability Comes from Focus and Deep Expertise
Dada Electric, founded in 2007, has always focused on the R&D and manufacturing of power transmission and distribution equipment rated 35kV and below. Centered around our four core product lines—oil-immersed transformers, dry-type transformers (epoxy resin cast), renewable energy transformers, and box-type substations—we have built a complete product system covering 9 series and nearly 150 models, with an annual production capacity of 4,000,000 kVA.
We know that true reliability is not a declared promise, but rather stems from our long-term dedication to medium- and high-voltage power technology, and from the rigorous quality control system validated by State Grid supplier qualification certification.
No matter which technical path your project ultimately takes, Dada Electric can provide proven, standardized, high-quality product solutions. We serve power systems, energy developers, and industrial customers, consistently delivering stable and predictable power equipment for complex operating conditions.
Welcome to contact Dada Electric's application engineers. Let us provide an objective, professional technical selection recommendation based on your project's specific parameters.
